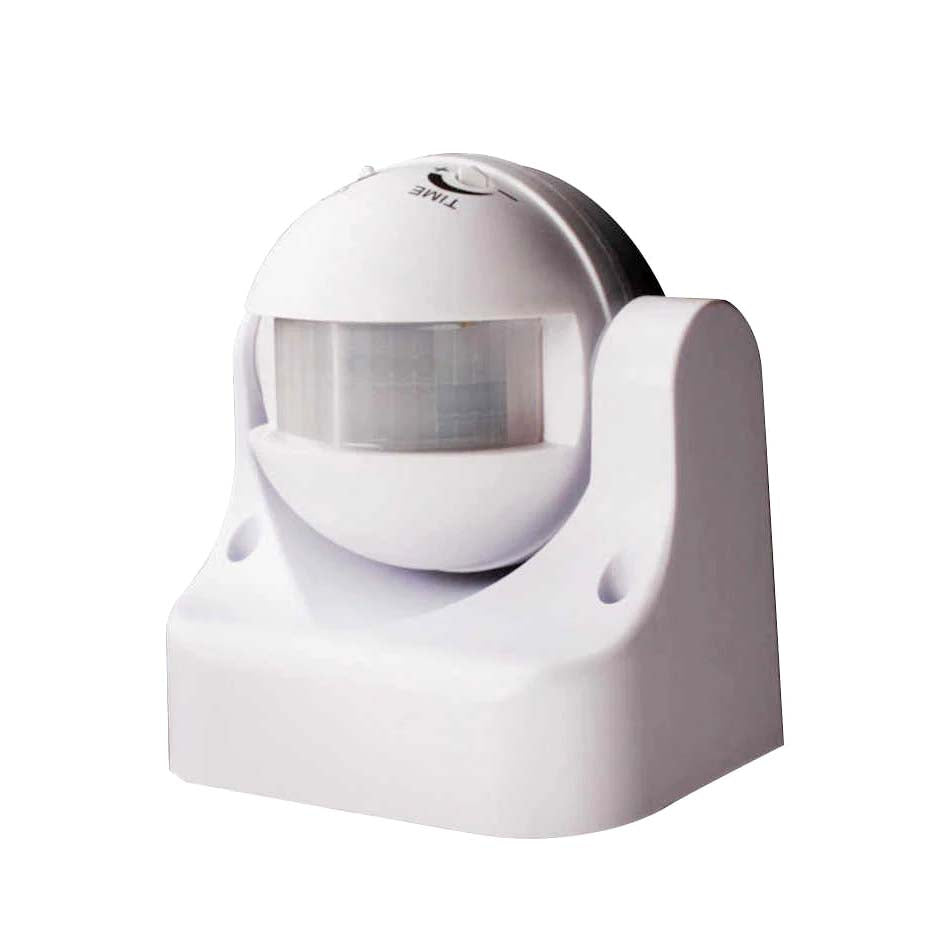

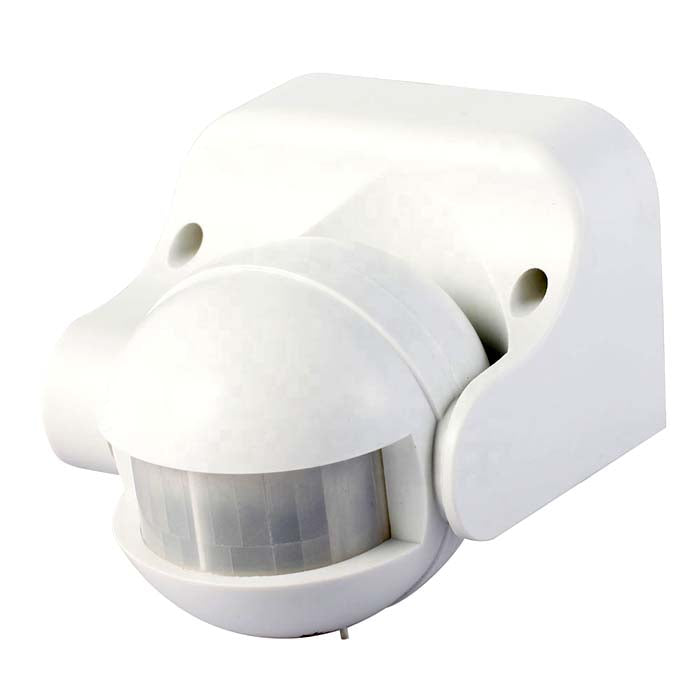

Outdoor Human Body Motion Sensor Switch

Product Description
Rs 1,650.00
Maximum quantity available reached.
KEY FEATURES:
  • New type of energy-saving lighting switch, adopts high sensitivity detector, integrate circuit and SMT, convenient, safe, wider detection range, practical functions, widely used in staircases, corridors, corridors and public toilet of various buildings.
  • 180 degree induction angle. The wide detection range, could be adjusted according your desire.
  • Identifying day and night automatically, manually adjusting the knob to choose day and night work, stable product performance. IP44 protection grade, super long induction distance 12 meters and super large induction range 180 degrees, strong induction ability, stable performance.
  • Applicable to doorway, corridor, elevator entrance, balcony, toilet, mirror, wardrobe, cabinet, warehouse, basement, garage and other indoor & outdoor places.
WARRANTY: 6 Months (Limited*)



TECHNICAL DETAILS:
Model: MS-1002W
Power source : 220-240V AC
Color : White
Detection angle : 180°
Detection distance : 12m ( ± 2m)
Power frequency : 50Hz
Ambient light : 3-2000LUX (adjustable)
Rated load : 1200W (LED Lights)
300W (Resistive load like incandescent lamp )
Working temperature : -20~+40℃
Time-delay :
Min : 10sec ±3sec
Max : 7min ±2min
Power consumption : 0.45W (work); 0.1W (static)
Working humidity : <93%RH
Installation height : 1.8m-2.5m
Detection motion speed : 0.6-1.5m/s
IP Grade : IP44 (Suitable for indoor & outdoor)

When selecting the mounting position take into account the following points.
1. The sensor is designed for optimum performance when mounted 2.5 meter above ground level.
2. Avoid positioning close to trees or shrubs, which may cause false triggering during wet windy weather.
3. Avoid pointing at or positioning close to heat sources such ad flu's or heat extraction units, which may cause false triggering.
4. Avoid mounting at strong electromagnetic disturbance, which may cause false triggering.

WHAT YOU WILL GET (Packed in Box):
1 * Infrared Sensor Switch
1 * User Manual
1 * Installation Kit

Product Code:
Brand: M-STAR
